ThinkEdge SE30 IO Box
$319.99
Lenovo Buy Back ProgramEarn Money while helping the planet. Recycle your old PCs & Electronics and earn a Visa Gift Card to use anywhere Visa is accepted. Easy and Free Shipping!
FREEDeliveryGet it between Fri. Apr 18 - Tue. Apr 22
Overview:

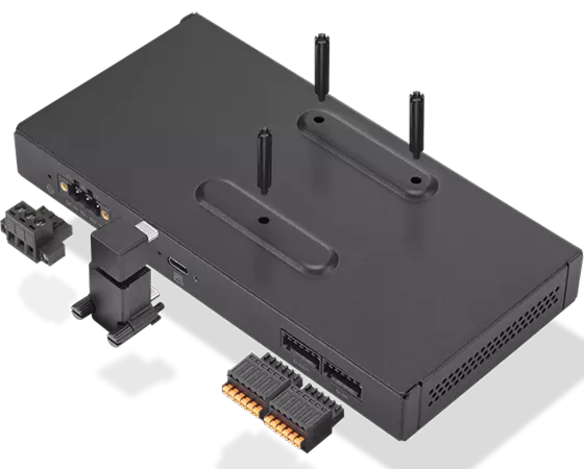

The ThinkEdge SE30 IOBOX connects to ThinkEdge SE30 via a Type-C connection, providing extra vertical IO offerings such as Power over Ethernet (PoE), Digital Input/Output, and a Serial port (RS232/422/485) offering flexibility and adaptability during Retail, Manufacturing, and Smart Building system integration. One DC cable provides voltage input to the IOBOX and PC device simultaneously, saving customers the extra burden of an AC/DC power transfer in industrial DC power supply environments.
Key Details:
Product Dimensions (L*W*H): 177*88*25.6mm
Operating Temperature: - 20 ~ 60 C (- 4 ~ 140 F)
Expansion Port Front: 2x RS-232/422/485 (SW changeable), 2x PoE(fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab, also compatible with IEEE 802.3af or IEEE 802.3at devices, with input power must be higher than 135W). Equipped with RTL8153B. Support full duplex flow control (IEEE 802.3x)
Expansion Port Rear: 1x DC-in power LED indicator, 1x DC-in 9~36V power input, 1x USB-C*, DI connector x1, (Input type: NPN/PNP, Input resistance: 2.5 kΩ, Isolation voltage: 1.5 kV (DC), Overvoltage protection: 70 V (DC)), DO connextor x1*(Output type: NPN, voltage 5-30V from external power supply, Current: 500 mA/Channel at 25 C, 300 mA/Channel at 60 C, Isolation voltage: 1.5 kV (DC))
Part Number: 4XH1C95567
